| About Product |

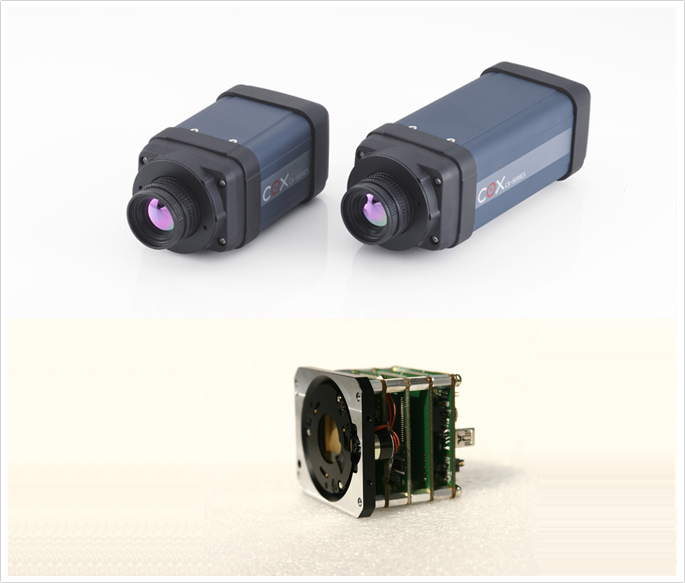

The CX series are extremely affordable thermal imaging cameras. They provide crisp and clear image in total darkness, light
fog or smoke. They can be configured with various lenses for medium range observation. You can easily install and integrate
CX cameras into any existing CCTV or monitoring infrastructure. The operation is also easy, no operator training is required. |
|
|
| Selection Guide |
|
Resolution |
Pitch |
Measurement |
Raw Data /
Ethernet Control |
Temperature
Data |
| CX300 |
384X288 |
25um |
NO |
NO |
NO |
| CX320 |
YES |
YES |
YES |
| CX600 |
640X480 |
17um |
NO |
NO |
NO |
| CX640 |
YES |
YES |
YES |
|
|
| Lens Specifications
|
| Focal Length(HxVxD) |
Focusing Range |
F/# |
| 8mm(61.9°x48.5°x78.6°) |
∞ ~ 30mm |
0.8 |
| 12mm(43.6°X33.4°X53.1°) |
∞ ~ 0.25m |
1.0 |
| 20mm(27°x20.4°x33.4°) |
∞ ~ 0.3m |
1.0 |
| 27mm(20°x15°x25°) |
∞ ~ 0.4m |
1.0 |
| 50mm(12.4°x9.3°x13°) |
∞ ~ 2.5m |
1.0 |
| 75mm(8.3°x6.2°) |
∞ ~ 5m |
1.0 |
| 100mm(5.5°x4.1°) |
∞ ~ 5m |
1.0 |
|
| * More various lenses are available up to 250mm lens. |
| CX series Nomenclature |
| Thermography |
Security |
| CX320 |
Model Type (Fixed type) |
Resolution 320 x 240 & Standard 20mm lens |
|
| CX300 |
| |
Resolution 320 x 240 & Standard 20mm lens |
|
| CX 320 - 12M |
Model Type
(Fixed type) |
Resolution
320 x 240 |
12mm
Motorized Lens |
|
| CX 300 - 12M |
| |
Resolution
320 x 240 |
12mm
Motorized Lens |
|
| CX640 |
Model Type (Fixed type) |
Resolution 640 x 480 & Standard 20mm lens |
|
| CX600 |
| |
Resolution 640 x 480 & Standard 20mm lens |
|
|
|
