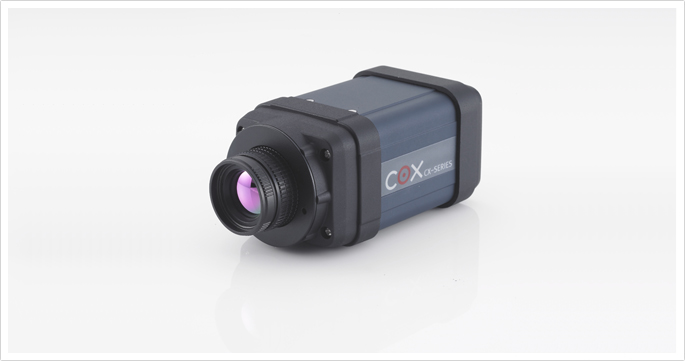

| CX300 / CX600 |
 Home > Products > CX300 / CX600 |
|
|
| Technical Specifications |
 |
| Features |
- 384 x 288/ 640 x 480 Resolutions
- Various FOV lenses Available
- Rapid Video Frame Rate 60Hz(NTSC)/50Hz(PAL)
- Short Export Period Within 2 weeks(Fast & Easy)
- Flexibility in Customizing
- Free of Customs tax for EU & US
- Unprecedented Price |
|
| CX300/CX600 Specifications |
| Resolution |
384 x 288 / 640 x 480 |
| Effective Resolution |
110,592 / 307,200 |
Detector type
Thermal Sensitivity(NETD) |
LWIR, Uncooled A-Si Microbolometer
60mK(average) @ f/1, 60Hz, 300K |
| Spectral Range |
8 to 14 μm |
| Operability |
99.9% |
| Footage Temperature Range |
-20°c to 300°c |
| Pixel Pitch |
25 μm / 17μm |
| Zoom |
2x & 4x E-Zoom |
| Focus |
Manual, Motorized(Optional) |
| Frame Rate |
NTSC : 60Hz, PAL : 50Hz |
| Color Variation |
8 color palettes
(Gray / Iron / Rain_v1,2,3 / Half_gray / Yellow / MidGrey Fire / BlueRed) |
| Function |
Brightness(-10 to 10), Contrast(-10 to 10), Invert, Mirror, Flip on/off |
| Hot/Cold Indicator, Center Indicator on/off |
| Image Filter |
Off/Sharpen1/Sharpen2/NR1/NR2 |
| System |
NTSC/PAL Compatible |
| NUC(1Min/5Min/10Min/30Min/1Hour/Off) |
| RS485 Communication(PELCO D Protocol) |
| Start-up |
< 2 Seconds |
| Optional |
Outdoor Housing equipped Germanium window
(Encapsulation : IP 66),Motorized lenses |
|
|
| General |

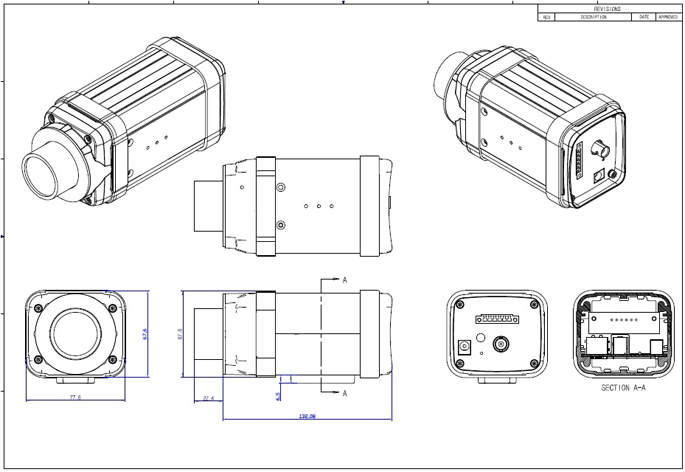

| Dimensions(L.W.H) |
132.08 x 77.6 x 67.6 mm |
| Input Voltage |
110 to 220V AC(DC 12V) |
| Operating Temperature |
-15°c to 50°c |
| Storage Temperature |
-40°c to 70°c |
| Power Consumption |
12 VDC: 5W |
| Weight |
Approx. 450g(without lens)
* up to 1.4Kg including 100mm Lens |
|
|
 |
| |
|
|
|
